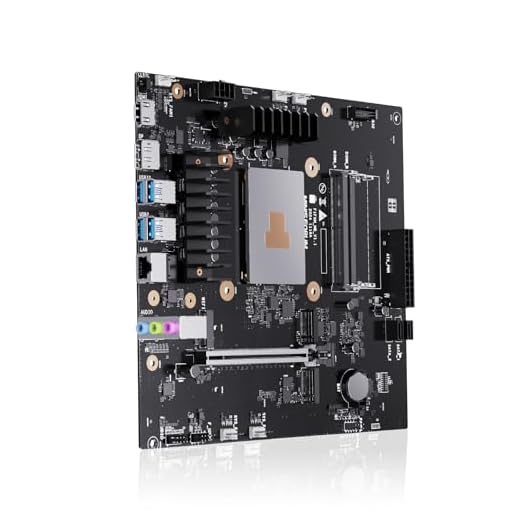

MINISFORUM Motherboard BD795M M-ATX Motherboard, AMD Ryzen 9 7945HX, 16C/32T, up to 5.4GHz, PCIe 4.0 x16 Slot, Dual NVMe M.2 Slots, 2X SATA3.0 HDD/SSD Slots, DDR5, 8K HDMI/DP, USB 3.2, RJ45 2.5G

Features

• Powerful Performance: Unleash the beast inside your PC build! At the heart of this MINISFORUM BD795m motherboard is the mighty AMD Ryzen 9 7945HX, with 16 cores and 32 threads (64MB cache, up to 5.2GHz) speed to handle any complex workload. TSMC 4nm and Zen 4 architecture. Provides faster response speed and sensitive response to multithreading. The integrated AMD Radeon 610M graphics processor adds visual punch to your display.
• Flexible Configuration: In terms of memory, the BD795M motherboard comes with a DDR5 dual-channel setup with two SODIMM slots supporting up to 5200MHz and a maximum capacity of 96GB for lightning-fast data access. Storage is never an issue with 2×M.2 2280 NVME SSD slots (each supporting up to 4TB at PCIe4.0x4 speeds) and 2×SATA HDD/SSD slots for all your data hoarding needs.
• Ultra Connectivity: Connectivity is king here. The BD795M motherboard cpu combo is equipped with PCle 4.0 X16 connector allows for powerful expansion. With a 2.5G RJ45 LAN port for ultra-fast wired networking and a range of video outputs including 1 x HDMI2.1 FRL and 1 x DP1.4, you can connect to the latest displays. The PCle4.0 x 16 expansion slot allows you to install a discrete graphics card.
• Attention: The BD795M pc motherboard is designed for users who want flexibility. Rather than providing a pre-configured Wi-Fi network card, this host leaves the Wi-Fi network card base open, allowing you to select and install the appropriate Wi-Fi network card according to your needs. For optimal performance, you can enjoy a customized network connection.
• Rich Interface: The BD795M motherboard's I/O ports are thoughtfully designed with 2 x USB3.2 Gen1 Type-A ports, 2 x USB2.0 Type-A ports and various audio connectors for a seamless user experience. Extensive headers allow for easy power, fan and front panel installation. And its Micro-ATX form factor (240x220x1.6mm) fits compact designs, while requiring an ATX power supply (>200W) to deliver performance. Take your computing to the next level with MINISFORUM!
